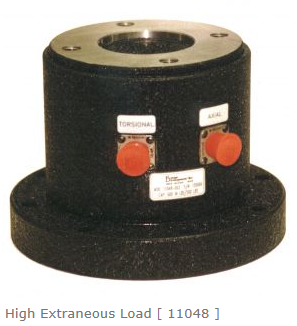

美國HitecSDI拉扭復合傳感器設計用于同時測量扭矩（Mz）和推力（Fz）的雙分量傳感器，并提供兩個單獨的輸出。
傳感器可以進行串?dāng)_補償，消除了離軸加載效應。
該傳感器的堅固結構和元件設計使其能夠承受顯著的外力（見無關載荷方程）。
提供各種量程和尺寸。
具體請咨詢我們的應用工程師。

Capacities ........................
500 in-lbs (Mz) / 500 lbs (Fz)
 2500 in-lbs (Mz) / 5000 lbs (Fz)
 2500 in-lbs (Mz) / 2500 lbs (Fz)
 4000 in-lbs (Mz) / 4000 lbs (Fz)
 10000 in-lbs (Mz) / 20000 lbs (Fz)
2500 in-lbs (Mz) / 5000 lbs (Fz)
Overload capacity........................  150% F.S. both axes
Output at full scale load.....................  2.0 mV/V nominal
Non-linearity.............................................  0.10% of F.S.
Hysteresis...................................................  0.10% of F.S.
Zero balance...............................................  +/-1% of F.S.
Compensated temperature..........................  70 to 170°F
Useable temperature.................................  -65 to +250°F
Temperature effect on zero.................  0.002% of F.S./°F
Temperature effect on span.............  0.002% of Rdg./°F
Bridge resistance....................................  700/350 Ohms
Excitation voltage, maximum..............................  20 Vdc
Material........................................................  Alloy steel

尺寸圖紙
